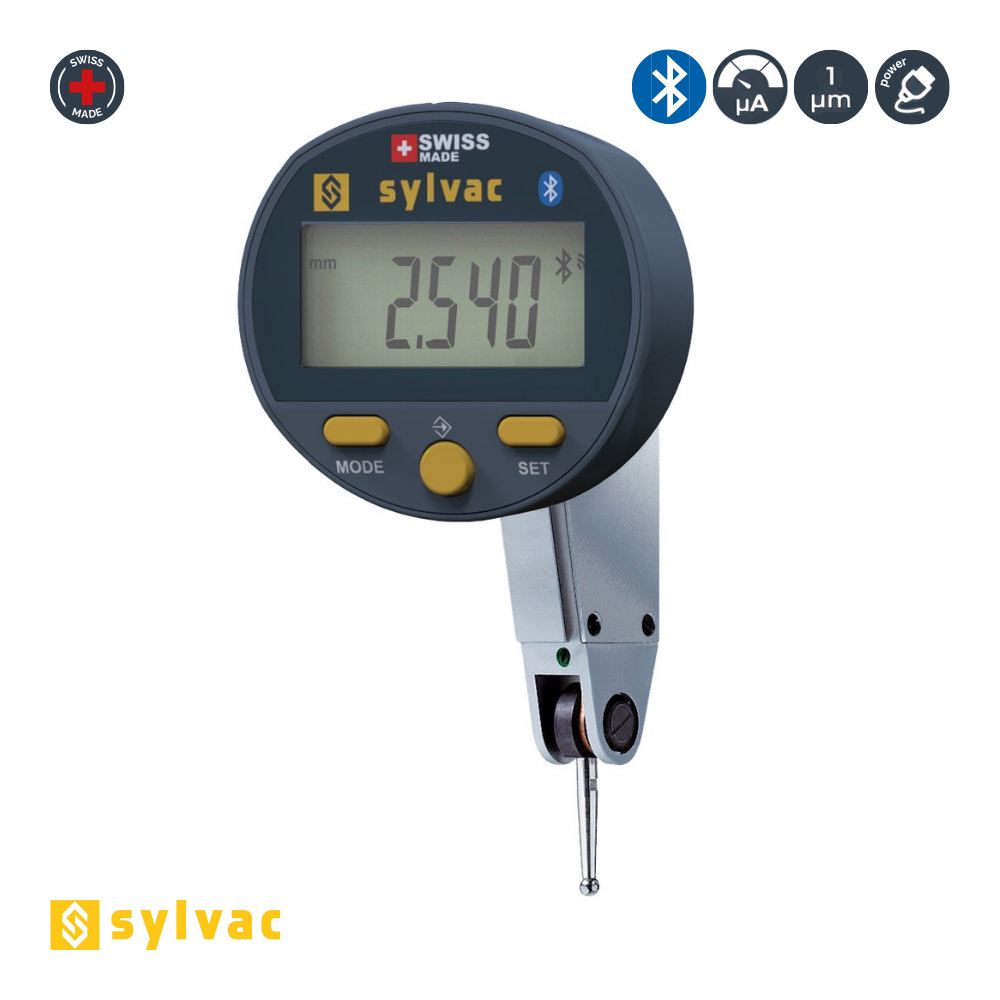

The S_Dial TEST Smart 12.5 mm is a versatile digital test indicator designed for high-precision flatness and roundness measurements. With integrated Bluetooth® connectivity, IP54 protection, and a compact rotatable display, it combines flexibility with durability. Intelligent features like auto wake-up, sleep mode, and position memory ensure reliable, efficient performance in demanding inspection environments.
R20 984
Excl .VAT
Free shipping
Compact and versatile digital test indicator with integrated Bluetooth® for wireless data acquisition. Its Ø45 mm housing, 270° rotatable display, and multiple stylus options ensure precise and flexible measurements across a wide range of applications. Built with an IP54-rated water- and coolant-resistant body, it combines durability with ease of use.
Portability and Flexibility: Small housing and rotatable display allow use in confined spaces and from any angle.
Wireless Connectivity: Bluetooth® technology ensures quick, error-free data transfer; RS232 option available for external integration.
High Precision: 0.001 mm resolution with reliable, reproducible results for professional metrology.
User-Friendly Design: Large, clear display, programmable button, and intuitive interface enhance ease of use.
Customizable Options: Interchangeable stylus lengths and ball tips adapt to various measurement needs.
Durable Construction: IP54-rated for protection against water and coolant, designed for tough environments.
Measuring capacity: 12.5 mm
Stylus length: 12 mm (standard)
Accuracy: ±2 μm
Total accuracy (ges): ±4 μm
Resolution: 0.001 mm / 0.00005 in
Repeatability: 0.5 μm
Measuring force: 0.15 N
Friction on probe orientation: 4 N
Weight: 140 g
Protection rating: IP54 (IEC 60529)
Connectivity: Bluetooth® wireless technology, RS232, USB
Functions: Zero setting, Min/Max/Delta display, Preset, Resolution selection, Analogue display
Measurement range: ±99.999 mm / 3.99995 in | ±999.99 mm / 39.9995 in
Sylvac is a Swiss manufacturer of high-precision measuring instruments, trusted worldwide for accuracy and innovation.
