The S_Dial WORK Advanced 12.5 mm is a robust digital indicator with a rotatable display and battery-free operation. Engineered for precision, it offers a 0.001 mm resolution, IP54 protection, and a large, easy-to-read screen with tolerance indication. Designed to maximize productivity, it includes auto wake/sleep, programmable functions, and position memory, making it an ideal tool for repeatable and accurate measurements in industrial applications.
R22 145
Excl .VAT
Free shipping

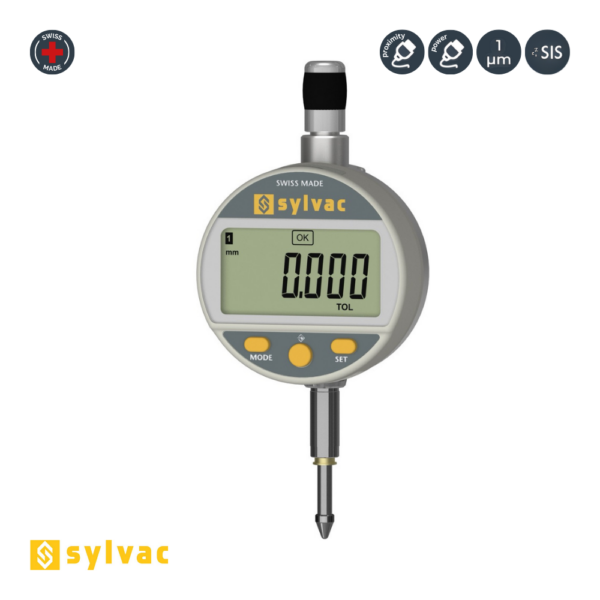

High-quality digital indicator with a rotatable Ø59.5 mm housing and large display for easy readability. Designed for precision measurement tasks, it offers a resolution of 0.001 mm, IP54 protection, and battery-free operation via Proximity and Power data outputs.
Easy to Read: Large display with tolerance indication and rotatable housing for flexible viewing.
Battery-Free Operation: Runs without batteries using Proximity or Power connections, reducing downtime.
Durable Design: IP54 water- and coolant-resistant build ensures long-lasting performance.
Smart Features: Auto wake-up when moved and auto sleep after 10 minutes of inactivity, with position memory.
Flexible Measurement: Customizable functions and programmable options for added versatility.
Measuring range: 12.5 mm
Resolution: 0.001 mm
Maximum error (MPE): ±3 μm
Repeatability: 1 μm
Dimensions as in image:
Measuring force:
Protection rating: IP54 (IEC 60529)
Connectivity: Proximity/Power, RS232, USB
Functions: Zero setting, MIN/MAX/DELTA, tolerance, preset, ref/II, multiplication factor, key lock
Sylvac is a Swiss manufacturer of high-precision measuring instruments, trusted worldwide for accuracy and innovation.
